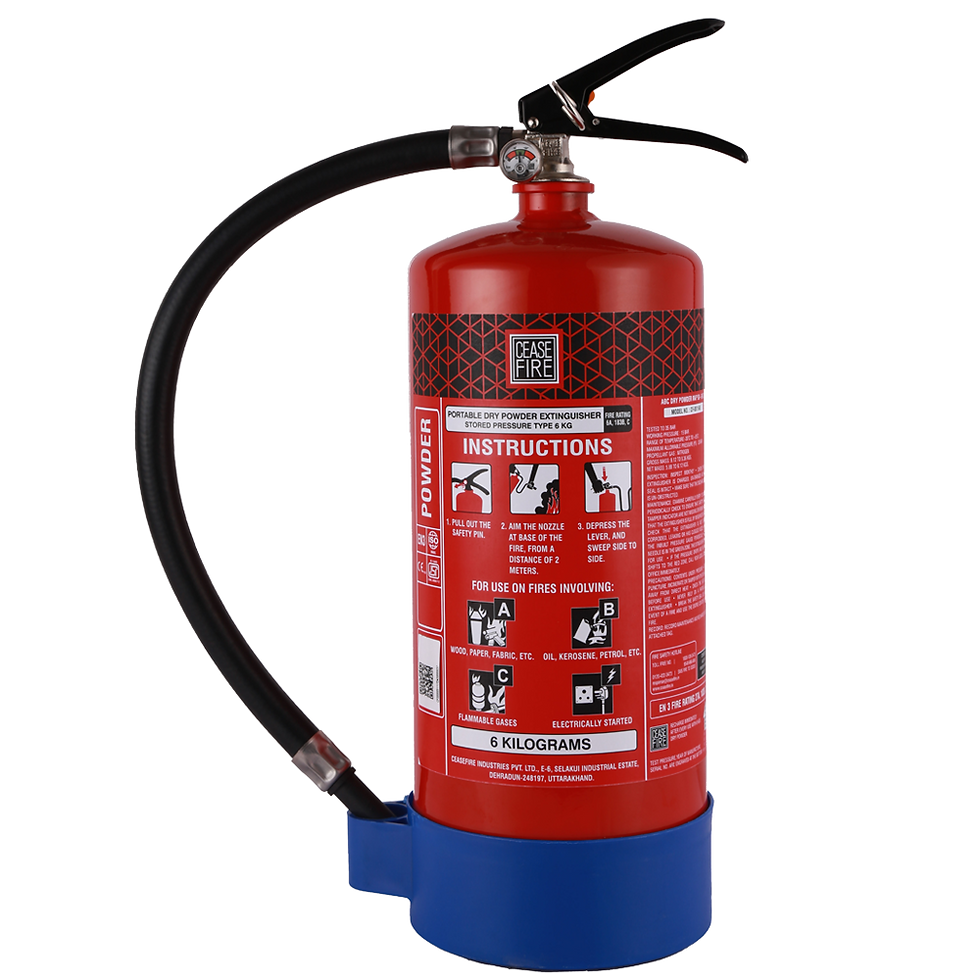

ABC MAP 50 Based Portable (Stored Pressure Type) Fire Extinguishers
- Fights Class A, B, C and electrically started fires
- Portable, thus accessible
- Effective Discharge Mechanism
- World-class quality
- Available in 2kg, 4kg, 6kg, 9kg & 12kg
In environments such as schools, offices, hospitals & factories, the Ceasefire ABC Powder extinguisher is your safest bet. Mono Ammonium Phosphate paired with a simple, controllable discharge mechanism and stored pressure technology maximises the firefighting power and puts out the fire within seconds.
Ceasefire’s ABC extinguishers are effective against Class A, B and C fires as well as Electrical fires. They take the guesswork and confusion out of choosing an extinguisher and save valuable time in the face of the fatally dangerous enemy called fire.
Ceasefire’s ABC extinguishers are built for speed, power and reliability. A simple two-step activation mechanism allows you to fight the fire within seconds. MAP50 and MAP90 concentrations of Mono Ammonium Phosphate maximizes the fire fighting power available to you. And stringent quality control and multiple point testing systems ensure that when you are faced with a fire, these extinguishers will deliver.Ceasefire’s ABC Powder portable range of extinguishers come in 2Kg, 4Kg, 6Kg, 9kg size variants and are Stored-pressure type extinguishers, in Mild steel container bodies.
FIRE RATINGS:
MAP-50 2 Kg 4 Kg 6 Kg 9 Kg IS 15683 Fire Ratings 2A, 70B 4A, 144B 6A, 183B 6A, 233B EN 3 Fire Ratings 8A, 70B 21A, 144B 27A, 183B 43A, 233B -
Classification: Fights Class A, B, C and Electrically started fires.
-
Agent Potency: Packed with 50% and 90% MAP concentration.
-
Pressure gauge: Easy-to-read pressure gauge for ease of monitoring
-
Special safety valves: Equipped with Schraeder Valve and Pressure Relief Valve (available only in portable range).
-
6-year Warranty: 6-year Warranty means Ceasefire is looking out for the health of your fire safety products.
-
Certification: LPCB, BSI Kitemark, PED, MED, and UKCA-MED certified.
-
Nomenclature For Portable Fire Extinguisher Fire Ext Map50 1Kg MS SP Red (Squeeze Grip) Fire Ext Map50 1Kg MS SP Red (Gun Housing) Fire Ext Map50 2Kg MS SP Red
(Squeeze Grip)Fire Ext Map50 2Kg MS SP Red
(Gun Housing)Fire Ext Map50 4Kg MS SP Red Fire Ext Map50 6Kg MS SP Red Fire Ext Map50 9Kg MS SP Red Product Code Cf-001137SG Cf-001137 Cf-001138SG Cf-001138 Cf-001139 Cf-001140 Cf-001141 Agent Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Stored Pressure / Cartridge Stored Pressure Stored Pressure Stored Pressure Stored Pressure Stored Pressure Stored Pressure Stored Pressure Certification Type PED,IS 15683 , EN3 PED,IS 15683 , EN3 PED,IS 15683 , EN3 PED,IS 15683 , EN3 PED,IS 15683 , EN3 PED,IS 15683 , EN3 PED,IS 15683 , EN3 BIS Marking Yes Yes Yes Yes Yes Yes Yes LPCB Marking Yes Yes Yes Yes Yes Yes Yes Kitemark Marking Yes Yes Yes Yes Yes Yes Yes CE Marking Yes Yes Yes Yes Yes Yes Yes Throw 3 Meters 3 Meters 3.5 Meters 3.5 Meters 4 Meters 6 Meters 7 Meters Gross Weight 2.20 To 2.30 Kg 2.20 To 2.30 Kg 3.54 To 3.66 Kg 3.54 To 3.66 Kg 6.71 To 6.87 Kg 9.12 To 9.36 Kg 14.54 To 14.90 Kg Gross Weight (With Less Thickness 1.85 To 2.10 Kg 1.85 To 2.10 Kg 3.30 To 3.50 Kg 3.30 To 3.50 Kg 6.20 To 6.50 Kg 9.0 To 9.35 Kg 13.20 To 13.60 Kg Net Mass 0.95 To 1.05 Kg 0.95 To 1.05 Kg 1.94 To 2.06 Kg 1.94 To 2.06 Kg 3.92 To 4.08 Kg 5.88 To 6.12 Kg 8.82 To 9.18 Kg Discharge Mechanism Squeeze Grip Thumb Triggered Squeeze Grip Thumb Triggered Squeeze Grip Squeeze Grip Squeeze Grip Applicable On Fires A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire IS 15683 Ratings 1A 1A 2A 2A 4A 6A 6A 34B 34B 70B 70B 144B 183B 233B EN 3 Ratings 5A 5A 8A 8A 21A 27A 43A 34B 34B 70B 70B 144B 183B 233B Can Construction Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Valve / Cap Construction Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining External Coating Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Helium Leak Detection Testing Yes Yes Yes Yes Yes Yes Yes Warranty In Years 6 6 6 6 6 6 6 G.A. Drawing Number Cf/Sp-1Lb-Exp50/Ga/05 Cf/Sp-1Lb-50/Ga/05 Cf/Sp-2Lb-Exp50/Ga/02 Cf/Sp-2Lb-50/Ga/03 Cf/Sp-4Lb-50/Ga/03 Cf/Sp-6Lb-50/Ga/03 Cf/Sp-9Lb-50/Ga/03 Working Pressure 15 Bar 15 Bar 15 Bar 15 Bar 15 Bar 15 Bar 15 Bar Hydrostatic Test Pressure 35 Bar 35 Bar 35 Bar 35 Bar 35 Bar 35 Bar 35 Bar Dia. Of Shell (Od) 86.5 Mm 86.5 Mm 108 Mm 108 Mm 140 Mm 160 Mm 175 Mm Approx. Height Of Fire Ext. 350 Mm 325 Mm 370 Mm 345 Mm 440 Mm 485 Mm 615 Mm Body Thickness 1.6 Mm 1.6 Mm 1.6 Mm 1.6 Mm 1.6 Mm 1.6 Mm 2.0 Mm Cylinder Material Spec. Steel Cr2(Dc01) Steel Cr2(Dc01) Steel Cr2(Dc01) Steel Cr2(Dc01) Steel Cr2(Dc01) Steel Cr2(Dc01) Steel Cr2(Dc01) Operating Temperature -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc Schraeder Valve Yes Not Applicable Yes Not Applicable Yes Yes Yes Pressure Relief Valve Yes Not Applicable Yes Not Applicable Yes Yes Yes Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
Nomenclature For Portable Fire Extinguisher Fire Ext Map50 2Kg SS SP Red Fire Ext Map50 4Kg SS SP Red Fire Ext Map50 6Kg SS SP Red Fire Ext Map50 9Kg SS SP Red Fire Ext Map50 6Kg SS SP Chrome Fire Ext Map50 9Kg SS SP Chrome Product Code Cf-001544 Cf-001545 Cf-001546 Cf-001547 Cf-000990 Cf-000991 Agent Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Abc Powder Map 50 Stored Pressure / Cartridge Stored Pressure Stored Pressure Stored Pressure Stored Pressure Stored Pressure Stored Pressure Certification Type PED,IS 15683 PED,IS 15683 PED,IS 15683 PED,IS 15683 PED PED BIS Marking Yes Yes Yes Yes Not Applicable Not Applicable LPCB Marking Not Applicable Not Applicable Not Applicable Not Applicable Yes With T&C (16.5) Yes With T&C (16.5) CE Marking Yes Yes Yes Yes Yes Yes Throw 3.5 Meters 4 Meters 6 Meters 7 Meters 6 Meters 7 Meters Gross Weight 3.54 To 3.66 Kg 6.71 To 6.87 Kg 9.12 To 9.36 Kg 14.54 To 14.90 Kg Approx. 9.60 Kg Approx. 14.70 Kg Net Mass 1.94 To 2.06 Kg 3.92 To 4.08 Kg 5.88 To 6.12 Kg 8.82 To 9.18 Kg 5.88 To 6.12 Kg 8.82 To 9.18 Kg Discharge Mechanism Squeeze Grip Squeeze Grip Squeeze Grip Squeeze Grip Squeeze Grip Squeeze Grip Applicable On Fires A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C & Electrical Started Fire. A, B, C & Electrical Started Fire. IS 15683 Ratings 2A 4A 6A 6A Not Applicable Not Applicable 70B 144B 183B 233B Not Applicable Not Applicable EN 3 Ratings Not Applicable Not Applicable Not Applicable Not Applicable 27A 43A Not Applicable Not Applicable Not Applicable Not Applicable 183B 233B Can Construction Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Drawn Rolled & Mig Welded Drawn Rolled & Mig Welded Valve / Cap Construction Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining External Coating Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Chrome Finish Chrome Finish Helium Leak Detection Testing Yes Yes Yes Yes Yes Yes Warranty In Years 6 6 6 6 6 6 G.A. Drawing Number Cf/Sp-2Lb-50/Ga/03 Cf/Sp-4Lb-50/Ga/03 Cf/Sp-6Lb-50/Ga/03 Cf/Sp-9Lb-50/Ga/03 0 0 Working Pressure 15 Bar 15 Bar 15 Bar 15 Bar 15 Bar 15 Bar Hydrostatic Test Pressure 35 Bar 35 Bar 35 Bar 35 Bar 35 Bar 35 Bar Dia. Of Shell (Od) 108 Mm 140 Mm 160 Mm 175 Mm 160 Mm 175 Mm Approx. Height Of Fire Ext. 345 Mm 440 Mm 485 Mm 615 Mm 485 Mm 615 Mm Body Thickness 1.5 Mm 1.5 Mm 1.5 Mm 1.5 Mm 1.5 Mm 1.5 Mm Cylinder Material Spec. Ss 304 (1.4301) Ss 304 (1.4301) Ss 304 (1.4301) Ss 304 (1.4301) Ss 304 (1.4301) Ss 304 (1.4301) Operating Temperature -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc Schraeder Valve Yes Yes Yes Yes Yes Yes Pressure Relief Valve Yes Yes Yes Yes Yes Yes Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
- Residential Areas
- Offices & Factories
- Server Rooms
- Large Institutions
- Oil Storage Areas
- Battery Banks
