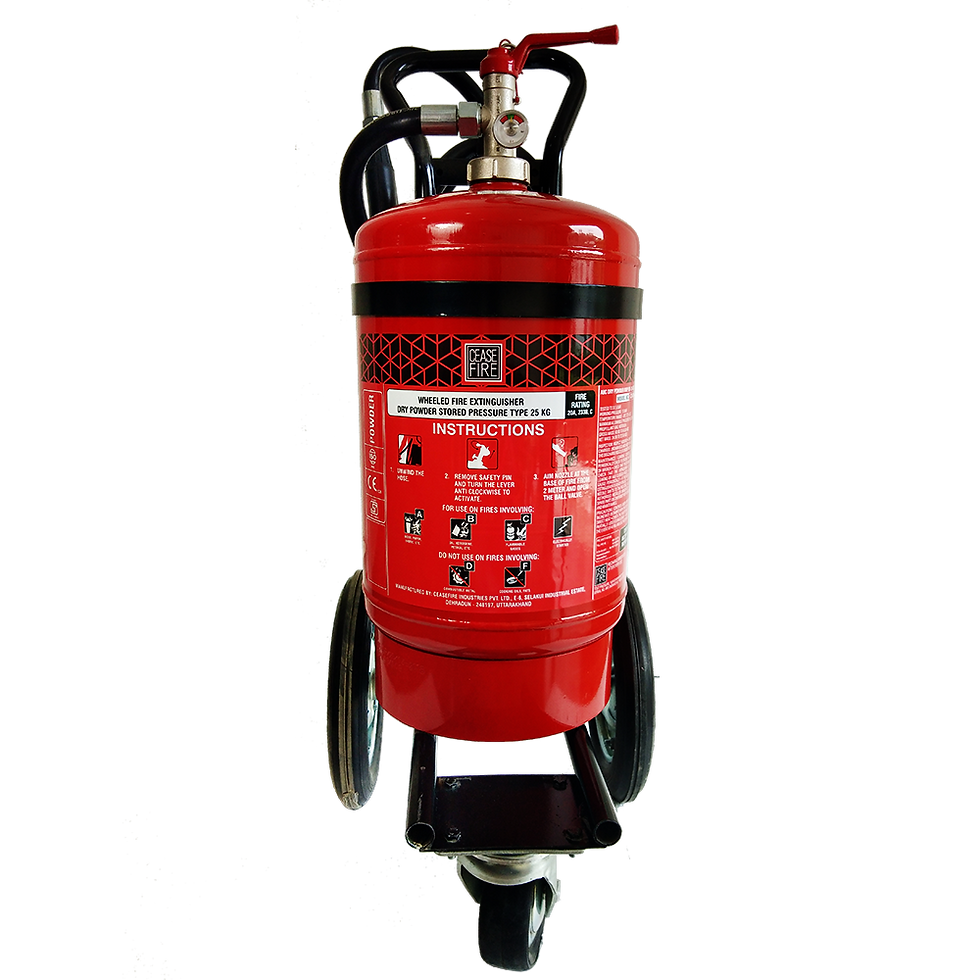

ABC Powder Based Wheeled (Spot Pressure Type) Fire Extinguishers
- Requires no prior training
- Works quickly without wasting any extinguishing agent
- Safe and reliable
- Easy-to-use with quick activation
- Available in 25kg, 50kg & 75kg
Trolley-mounted fire extinguisher serves as a back-up solution. The very size and power of trolley-mounted fire extinguishers make them an ideal choice for any delayed attack on fire. They are the second line of defense when hand-held extinguishers are not able to douse fire. Sometimes, these large-sized extinguishers could be the only solution for such places that are in isolated regions or are very crowded and where fire brigades may take time to reach or may not reach at all. Trolley-mounted fire extinguishers are also ideal for locations where volatile class B materials are stored in abundance and there is no time to wait for a fire brigade in case of a fire.
Ceasefire’s ABC Powder Cartridge takes the guesswork and confusion out of firefighting. Being one of the most versatile extinguishing agents known to man, ABC Powder fights Class A, B, C and electrical fires with ease. When ABC Powder falls on a fire, the Mono Ammonium Phosphate in it expands and forms a thin layer on top of the surface. This controls the fire and stops re-ignition.Easy to use with Quick Activation:Being a stored pressure extinguisher, the Plus requires no cartridge system (internal or external) activation. It’s always ready. Simply press the trigger to activate.
Fights Class A, B, C and Electric Fires : In a fire situation, there is no time to think a bout which extinguisher to use on which kind of fire. The Plus can be used on any kind of fire, making it a truly versatile firefighter.
External Cartridge Based : The external cartridge-based trolley-mounted MAP fire extinguisher can be activated quickly and easily. Therefore by using these fire extinguishers, large fires can be put out with ease.
Braided Rubber Hose Pipe: This durable, long-lasting pipe doesn’t develop any cracks due to wear and tear. With a throw of 14-16 feet, the Plus allows the fire fighter to maintain a safe distance while fighting the flames.
Meets International Standards:Conforms to ISI standards, BIS and is ISO 9001 certified.
Trolley Mounted Extinguisher: Can be easily wheeled to the scene of fire without any delay.
Mini Fire Engine on Wheels : The Plus provides back-up for the entire premises.
Nomenclature For Portable Fire Extinguisher Fire Ext Map50 25Kg MS CT Red Fire Ext Map50 50Kg MS CT Red Fire Ext Map50 75Kg MS CT Red Fire Ext Map90 25Kg MS CT Red Fire Ext Map90 50Kg MS CT Red Fire Ext Map90 75Kg MS CT Red Product Code Cf-001169 Cf-001170 Cf-001192 Cf-000019 Cf-000020 Cf-000021 Agent Map50 Map50 Map50 Map90 Map90 Map90 Agent Category Abc Powder Abc Powder Abc Powder Abc Powder Abc Powder Abc Powder Throw 6 Meters 8 Meters 10 Meters 6 Meters 8 Meters 10 Meters Certification Or Verifing Body Eurocert, BIS Eurocert, BIS Eurocert, BIS Eurocert, BIS Eurocert, BIS Eurocert, BIS Certification Type PED, IS 16018 PED, IS 16018 PED, IS 16018 PED, IS 16018 PED, IS 16018 PED, IS 16018 Bis Marking Yes Yes Yes Yes Yes Yes Ce Marking Yes Yes Yes Yes Yes Yes Gross Weight 66.00 To 70.00 Kg 117.00 To 120.00 Kg 151.00 To 155.00 Kg 66.00 To 70.00 Kg 117.00 To 120.00 Kg 151.00 To 155.00 Kg Net Contents 24.50 To 25.50 Kg 49.00 To 51.00 Kg 73.50 To 76.50 Kg 24.50 To 25.50 Kg 49.00 To 51.00 Kg 73.50 To 76.50 Kg Approx. Height Of Fire Ext. 990 Mm 1200 Mm 1200 Mm 990 Mm 1200 Mm 1200 Mm Discharge Mechanism Operating Lever (Ball Valve) Operating Lever (Ball Valve) Operating Lever (Ball Valve) Operating Lever (Ball Valve) Operating Lever (Ball Valve) Operating Lever (Ball Valve) Applicable On Fires Class A, B, C, & Electrical Started Fire Class A, B, C, & Electrical Started Fire Class A, B, C, & Electrical Started Fire Class A, B, C, & Electrical Started Fire Class A, B, C, & Electrical Started Fire Class A, B, C, & Electrical Started Fire IS 16018 Ratings 20A 20A 20A 20A 20A 20A 233B 233B 233B 233B 233B 233B Can Construction Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Valve / Cap Construction Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining External Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Warranty In Years 6 6 6 6 6 6 G.A. Drawing Number Cf/Ct-25Lb-C50/Ga/03 Cf/Ct-50Lb-C50/Ga/03 Cf/Ct-75-C50/Ga/02 Cf/Ct-25-C90/Ga/03 Cf/Ct-50-C90/Ga/03 Cf/Ct-75-C90/Ga/02 Working Pressure 15Bar 15Bar 15Bar 15Bar 15Bar 15Bar Dia. Of Shell (Od) 300.0 Mm 400.0 Mm 400.0 Mm 300.0 Mm 400.0 Mm 400.0 Mm Operating Temperature -30Oc To +55O C -30Oc To +55O C -30Oc To +55O C -30Oc To +55O C -30Oc To +55O C -30Oc To +55O C Hydrostatic Test Pressure 37.5 Bar 37.5 Bar 37.5Bar 37.5Bar 37.5Bar 37.5Bar Cylinder Material Spec. Steel Cr2(Dc01) Steel Hr3(Dd13) Steel Hr3(Dd13) Steel Cr2(Dc01) Steel Hr3(Dd13) Steel Hr3(Dd13) Body Thickness 3.0 Mm 3.5 Mm 3.5 Mm 3.0 Mm 3.5 Mm 3.5 Mm Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
- Residential Areas
- Offices & Factories
- Server Rooms
- Large Institutions
- Oil Storage Areas
- Battery Banks
