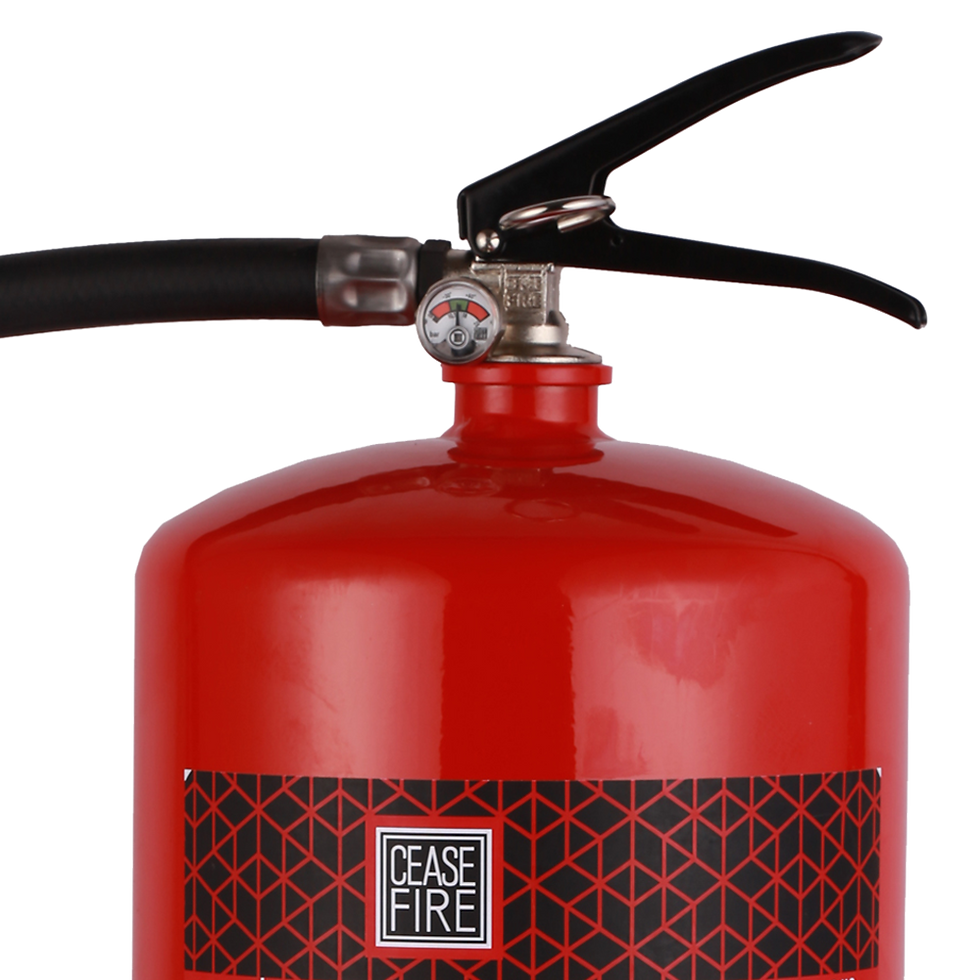

B Plus Special Agent Based Portable (Stored Pressure Type) Fire Extinguishers
- Fights Class B & C fires
- Unique powder splits into four upon activation
- High power agent throw covers a huge surface area
- Available in 1kg, 2kg, 4kg , 6kg & 9kg
B Plus is so potent, it packs in all the force of a 16 kg extinguisher into a 4 kilogram. That's 4 times the power!
And that’s what makes it the perfect extinguisher choice for petrol pumps and petrol chemical units.
B Plus is ideal for Class B & C fires, involving petrol, alcohol, industrial chemicals and more.
The reason for this is its unique powder, which explodes into minute particles at high temperatures, covering a huge surface area.Introduction: B Plus Powder explodes and breaks into fine particles that dramatically increase the surface area of the powder. This makes a B Plus Extinguisher so strong that it can pack in all the power of a 16 kg fire extinguisher into a 4 kg frame.
Application: Fight Class B and C fires such as those at petrol pumps, generators, and paint factories.
Compact: The effectiveness of the agent ensures that B plus Extinguishers pack in all the power of a 16 kg fire extinguisher into a 4 kg frame.
Pressure gauge: The world's smallest and yet remarkably easy to read, this is the only pressure gauge that can be tested onsite, using a special magnet to ensure that it is working perfectly and is 100% accurate.
Discharge mechanism: A simple squeeze grip activation mechanism allows you to control the discharge and optimise use of the extinguishing agent.
6 Year Warranty: The 6 year Warranty means Ceasefire is looking out for the health of your fire safety products.
World class quality: Comes with ISO 9001 and CE certification, and conforms to ISI standards. Comprehensive Helium Tests and Leak Tests also guarantee that the products you buy are manufactured according to the world's most stringent quality standards.
Nomenclature For Portable Fire Extinguisher Fire Ext B+ 1Kg MS SP Red Fire Ext B+ 2Kg MS SP Red Fire Ext B+ 4Kg MS SP Red Fire Ext B+ 6Kg MS SP Red Fire Ext B+ 9Kg MS SP Red Product Code Cf-000047 Cf-001147 Cf-001149 Cf-001150 Cf-001148 Agent B Plus Powder B Plus Powder B Plus Powder B Plus Powder B Plus Powder Stored Pressure / Cartridge Stored Pressure Stored Pressure Stored Pressure Stored Pressure Stored Pressure Certification Or Verifing Body Eurocert, BIS Eurocert, BIS,LPCB Eurocert, BIS,LPCB Eurocert, BIS,LPCB Eurocert, BIS,LPCB Certification Type PED,IS 15683 PED,IS 15683 , EN 3 PED,IS 15683 , EN 3 PED,IS 15683 , EN 3 PED,IS 15683 , EN 3 Dual Certificate Not Applicable Yes Yes Yes Yes BIS Marking Yes Yes Yes Yes Yes LPCB Marking Not Applicable Yes Yes Yes Yes KITEMARK Marking Not Applicable Yes Yes Yes Yes CE Marking Yes Yes Yes Yes Yes Throw 3.5 Meters 4 Meters 6 Meters 7 Meters 7 Meters Gross Weight 2.20 To 2.30 Kg 4.94 To 5.06 Kg 7.40 To 7.70 Kg 11.38 To 11.62 Kg 15.10 To 15.50 Kg Gross Weight (With Less Thickness 2.20 To 2.40 Kg 4.20 To 4.40 Kg 7.20 To 7.40 Kg 10.20 To 10.40 Kg 14.10 To 14.50 Kg Net Mass 0.95 To 1.05 Kg 1.94 To 2.06 Kg 3.92 To 4.08 Kg 5.88 To 6.12 Kg 8.82 To 9.18 Kg Discharge Mechanism Thumb Triggered Squeeze Grip Squeeze Grip Squeeze Grip Squeeze Grip Applicable On Fires B, C, & Electrical Started Fire B, C, & Electrical Started Fire B, C, & Electrical Started Fire B, C, & Electrical Started Fire B, C, & Electrical Started Fire IS 15683 Ratings 34B 89B 233B 233B 233B EN 3 Ratings Not Applicable 89B 233B 233B 233B Can Construction Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Deep Drawn & Mig Welded Valve / Cap Construction Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining External Coating Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Helium Leak Detection Testing Yes Yes Yes Yes Yes Domestic Warranty In Years 6 6 6 6 6 G.A. Drawing Number Cf/Sp-1Bc/Ga/03 Cf/Sp-2Bc-Lb/Ga/03 Cf/Sp-4Bc-Lb/Ga/02 Cf/Sp-6-Bc-Lb/Ga/04 Cf/Sp-9-Bc-Lb/Ga/02 Working Pressure 15 Bar 15 Bar 15 Bar 15 Bar 15 Bar Hydrostatic Test Pressure 35 Bar 35 Bar 35 Bar 35 Bar 35 Bar Dia. Of Shell (Od) 108 Mm 140 Mm 160 Mm 175 Mm 204 Mm Approx. Height Of Fire Ext. 345 Mm 440 Mm 485 Mm 615 Mm 615 Mm Body Thickness 1.6 Mm 1.6 Mm 1.6 Mm 2.0 Mm 2.0 Mm Body Thickness
(Less Thickness)1.4 Mm 1.2 Mm 1.4 Mm 1.4 Mm 1.6 Mm Cylinder Material Spec. Steel Cr2(Dc01) Steel Cr2(Dc01) Steel Cr2(Dc01) Steel Cr2(Dc01) Steel Cr2(Dc01) Operating Temperature -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc -30Oc To +60Oc Schraeder Valve Not Applicable Yes Yes Yes Yes Pressure Relief Valve Not Applicable Yes Yes Yes Yes Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
- Paint Shops
- Fuel / Oil Storage Areas
- Generator Rooms
- Workshops
