CAFS-Compressed Air Foam System (High Pressure)
- Fights Class A, B and E class fires
- High firefighting effectiveness
- Ennvironment-friendly
- World's most stringent quality standards
- Available in 10ltr & 50ltr
Water is fire’s oldest enemy. The best extinguishing agent known to man. It has a theoretical cooling ability of 2.6 MW per litre per second. But in a real fire situation, such tremendous cooling power can only be achieved with hundreds of litres of water. Because nearly 80% of the water escapes the fire zone without evaporating. Water’s immense firefighting power can be optimally utilised only by complete vaporisation in a fire environment.
To achieve this, water must be broken down into microscopic molecules that have a surface area coverage many times higher than water. These droplets (about 150 microns in size) must then be delivered to the fire with a kinetic force strong enough to overcome fire’s own convection currents. The result: a powerful, reliable and efficient extinguisher.
Ceasefire now brings together all these features and creates the Watermist Compressed Air Foam System; the best firefighting weapon ever designed. Ceasefire's Watermist Compressed Air Foam System features a high technology gun which breaks water up into miniscule droplets. These droplets are then delivered through micro nozzles with a high degree of dispersion onto the flames, allowing you to fight even very large fires successfully.
With Ceasefire's Watermist Compressed Air Foam System, nearly a 100% of the mist turns into steam and evaporates. This key process stops the fire from spreading and eliminates post fire collateral damage such as flooding.
The mist also acts as the perfect barrier against thermal radiation, giving increased protection to the firefighter. Ceasefire’s Watermist Compressed Air Foam System is also safe to use on Class B fires like petrol and diesel, and electrically started fires - two areas where traditional water applications would either spread the fire, or cause an electrical shock.Introduction: Water's immense firefighting power is harnessed in CAFS Water Mist extinguishers by breaking it down into microscopic molecules. These droplets (about 150 microns in size) are delivered to the fire with a kinetic force strong enough to overcome fire's own convection currents.
Works on large fires : The gun in Ceasefire's Watermist Compressed Air Foam System features a rotating motor, which breaks water up into miniscule droplets. These droplets are then delivered through micro nozzles with a high degree of dispersion onto the flames, allowing you to fight even very large fires successfully.
Increased protection : The mist also acts as the perfect barrier against thermal radiation.
Application: Works on Class A, B and electrically started fires.
Thermal shock proof : Does not cause cracks to structural elements, steel casings andpower line ceramics, due to the nonexistence of thermal shock damage.
Safe to use : No hazard to humans or damage to property due to low pressure water mist of approx. 150 micron size, generated using plain water.
Maximum efficiency : The mist's miniscule droplets of water 50 microns cover a larger surface.
Controllable discharge : A simple squeeze grip activation mechanism allows you to control the discharge and optimise use of the extinguishing agent.
EPDM rubber hosepipe : Superior grade EPDM rubber is far more flexible than the normal rubber used in most hosepipes. It is also far less prone to cracks.
World class quality : Comes with ISO 9001 and CE certification, and conforms to ISI standards. Comprehensive Helium Tests and Leak Tests also guarantee that the products you buy are manufactured according to the world's most stringent quality standards.
1 Year Warranty : One Year Warranty means Ceasefire is looking out for the health of your fire safety products.
Effective usage of water : 95% less water than traditional sprinkler systems with equivalent or better performance.
State of the art pressure gauge : The world's smallest and yet remarkably easy to read, this is the only pressure gauge that can be tested onsite, using a special magnet to ensure that it is working perfectly and is 100% accurate.

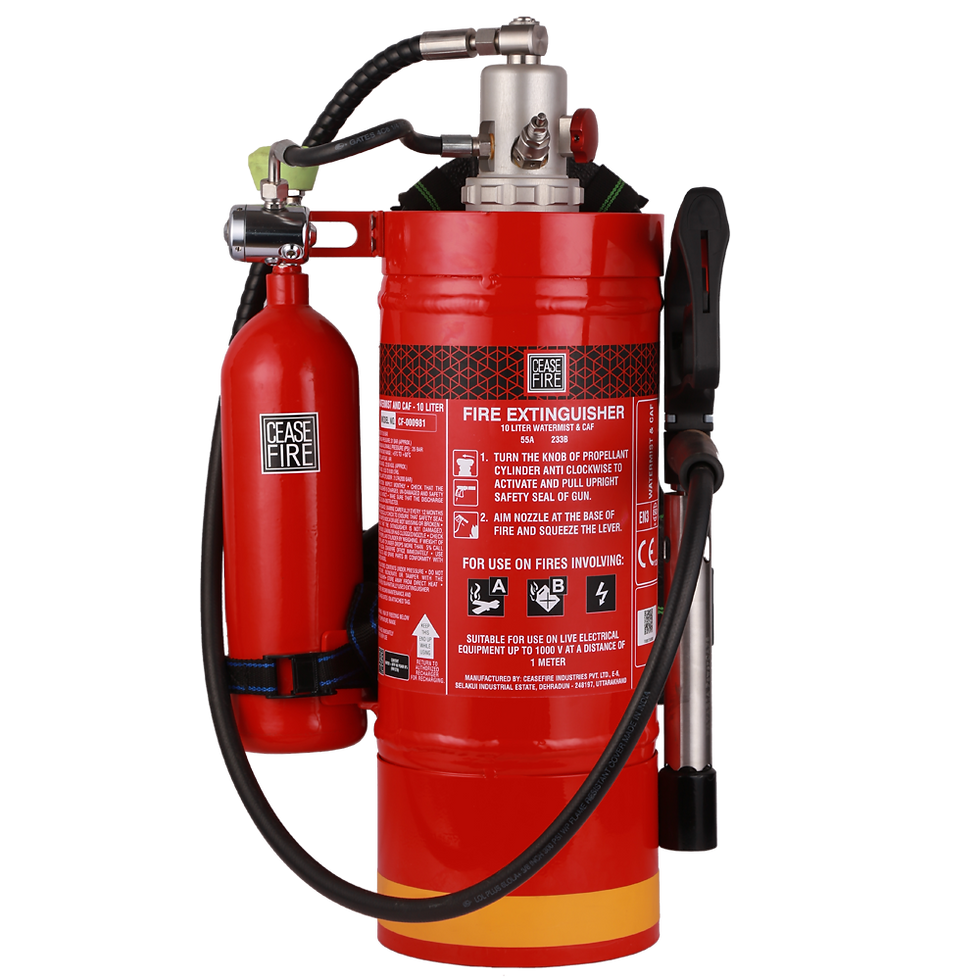

Nomenclature For Portable Fire Extinguisher Watermist And Caf Backpack Fire Extinguisher High Pressure-10Ltr Product Code Cf-000981 Agent Afff Foam 6% Stored Pressure / Cartridge Cartridge Type Ce Marking Yes Cartridge Size 2Ltr Mild Steel Cylinder - 200Bar Throw 12 Meters Gross Weight Approx. 25.50 Kg Net Mass 9.55 To 10.00 Ltr Discharge Mechanism Squeeze Grip Applicable On Fires A, B & Electrical Started Fire. EN 3 Ratings 34A 233B Can Construction Drawn Rolled & Mig Welded Valve / Cap Construction Machining External Coating Epoxy Polyester Powder Warranty In Years 6 Approx. Gun Weight In Kg 0.79 Kg G.A. Drawing Number Cf/Ct-Caf10/Ga/02 Working Pressure 30 To 31 Bar Hydrostatic Test Pressure 45 Bar Dia. Of Shell (Od) 204 Mm Approx. Height Of Fire Ext. 665 Mm Body Thickness 5.0 Mm Cylinder Material Spec. Al Alloy 6061 Operating Temperature 5 O C To 60O C Technical specifications are subject to change with time due to our continuous product improvisation initiatives.

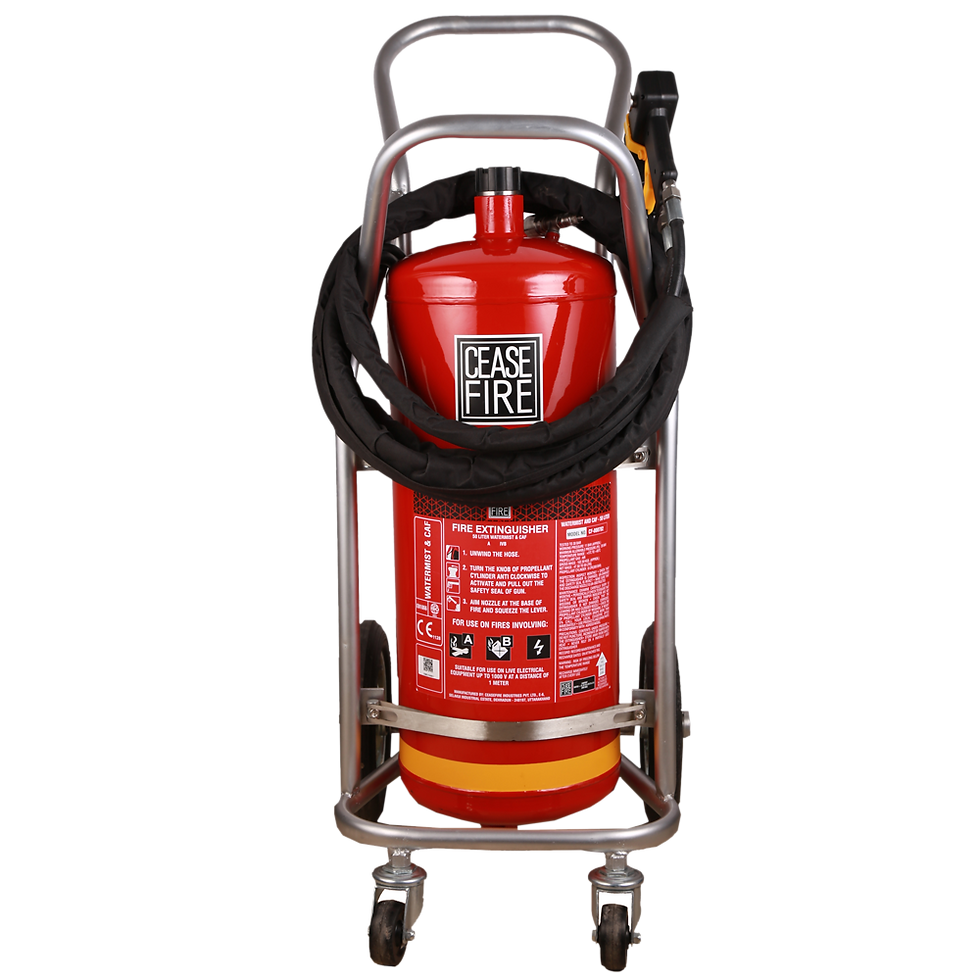

Nomenclature For Portable Fire Extinguisher Water Mist And Caf Fire Extinguisher High Pressure Trolley Mounted-50Ltr Water Mist And Caf Fire Extinguisher High Pressure Trolley Mounted With Special Foam-50Ltr Water Mist And Caf Fire Extinguisher High Pressure Trolley Mounted With Standard Afff Foam Compound-50Ltr Product Code Cf-000982P Cf-000982SF Cf-000982 Agent 6% Of Kv Foam 3% C-6 Cf Special Foam 36% Afff Foam 6% Throw 16 Meters 16 Meters 16 Meters Certification Type EN3-Dielectric Test, PED PED EN 1866, PED Kitemark Marking Yes No Yes Ce Marking Yes Yes Yes Propellant Cartridge Capacity 6 Ltr Mild Steel - 300 Bar 6 Ltr Mild Steel - 300 Bar 6 Ltr Mild Steel - 300 Bar Gross Weight Approx.
106.00 KgApprox.
106.00 KgApprox.
106.00 KgNet Contents 47.50 To 50.00 Ltr 47.50 To 50.00 Ltr 47.50 To 50.00 Ltr Approx. Height Of Fire Ext. 1200 Mm 1200 Mm 1200 Mm Discharge Mechanism Squeeze Grip Gun Squeeze Grip Gun Squeeze Grip Gun Applicable On Fires Class A, B & Electrical Started Fire Class A, B & Electrical Started Fire Class A, B & Electrical Started Fire En 1866 Ratings 55A 21A IvB IvB Can Construction Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Valve / Cap Construction Machining Machining Machining External Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Warranty In Years 6 1 1 Approx. Gun Weight In Kg Approx.
0.43 KgApprox.
0.43 KgApprox.
0.43 KgG.A. Drawing Number Cf/Ct-Caf50-Hp/Ga/03 Cf/Ct-Caf50-Hp/Ga/03 Cf/Ct-Caf50-Hp/Ga/03 Working Pressure 31Bar 31Bar 31Bar Dia. Of Shell (Od) 300.0 Mm 300.0 Mm 300.0 Mm Operating Temperature 5Oc To +60Oc 5Oc To +60Oc 5Oc To +60Oc Hydrostatic Test Pressure 50Bar 50Bar 50Bar Cylinder Material Spec. Al Alloy 6061 Al Alloy 6061 Al Alloy 6061 Body Thickness 8.0 Mm 8.0 Mm 8.0 Mm Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
- Oil & Petrochemical Factories
- Residential Buildings
- Large Institutions
- Workshops
- Generator Rooms
