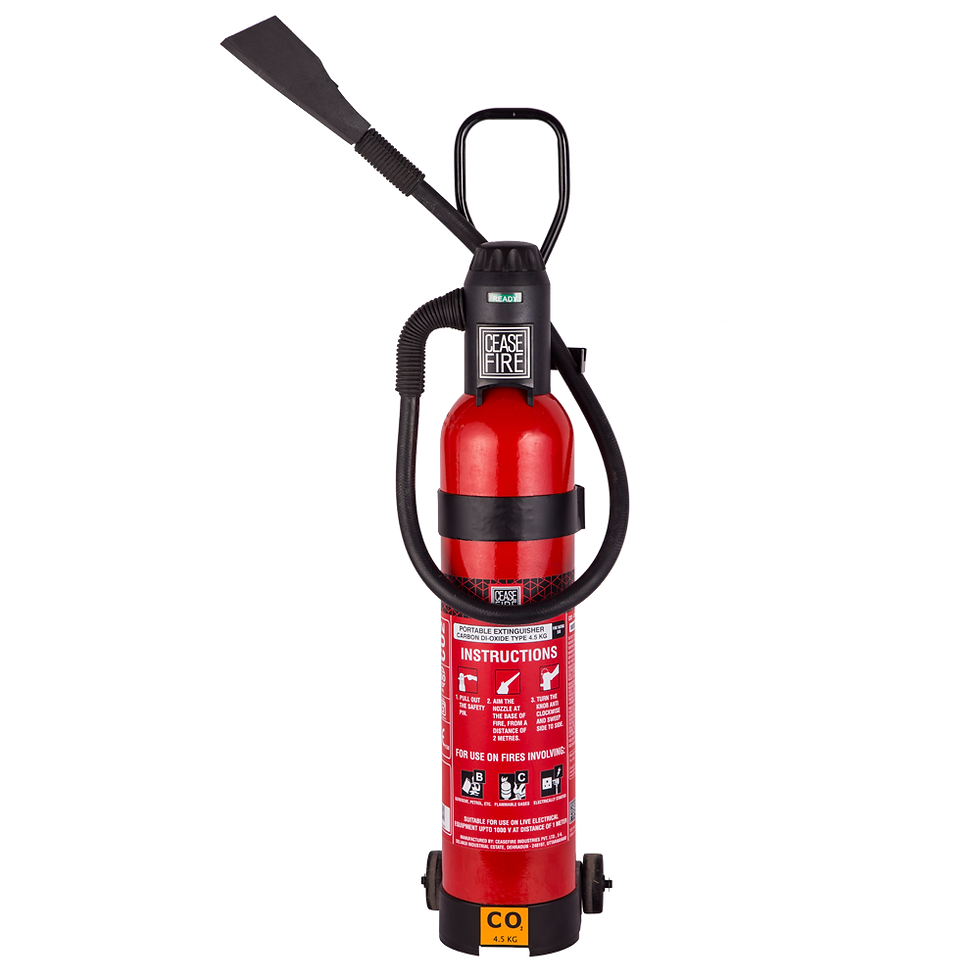

CO2 Based Wheeled Valve Type (Stored Pressure) Fire Extinguishers
- Fights Class B, C and ESF fires
- Advanced horn to dispese gas, removes risk of freeze burn
- State-of-the-art ready/Used indicator
- Leaves no residue
- Available in 4.5kg, 6.5kg & 22.5kg
Ceasefire’s sturdy and light CO2 extinguishers are very effective in putting out Class B, C and electrically started fires. Packed with tremendous power, it reduces the fire’s oxygen supply by blanketing effect, extinguishing the flames in seconds.
The Ceasefire CO2 extinguishers range is an extensive one, consisting of 2kg, 4.5kg, 6.5kg and 22.5kg variants. What makes this range most unique in the category is the availability of used & ready monitoring mechanism and the trolley mounted feature in 6.5kg and 22.5kg variants, in selective models.
FIRE RATINGS:
Size Ratings 2 Kg 34B 4.5 Kg 55B 6.5 Kg 55B 22.5 Kg 113B -
Application: Fights Class B, C, and electrically started fires.
-
Simplicity in handling: A simple discharge mechanism allows you to control the discharge and optimise use of the extinguishing agent.
-
Controllable discharge: A simple squeeze grip activation mechanism allows you to control the discharge and optimise use of the extinguishing agent.
-
User-friendly: Frost-free horn to dispense gas, removes risk of freeze burn.
-
Highly featureful: State-of-the-art Used/Ready indicator in selected models.
-
Wheel mounted: Trolley mounted design for ease of mobility in select models of 4.5kg and 22.5kg variants.
-
10-year warranty: The 10-year Warranty means Ceasefire is looking out for the health of your fire safety products.
-
World-class quality: Comprehensive Helium Tests and Leak Tests also guarantee that the products you buy are manufactured according to the world's most stringent quality standards.
-
Certification: LPCB, BSI Kitemark, PED, MED certified (may vary for individual models).
-
Nomenclature For Portable Fire Extinguisher Co2 Wheel Type Fire Ext. - 6.5Kg Co2 Squeeze Grip Fire Ext. - 6.5Kg Co2 Wheel Type Fire Ext. - 22.5Kg Product Code Cf-000065 Cf-000832 Cf-000066 Agent Co2 Co2 Co2 Throw 4 Meters 4 Meters 5 Meters Certification Or Verifing Body Eurocert, BIS Eurocert, BIS Eurocert, BIS Certification Type Ped, IS 16018 Ped, IS 16018 Ped, IS 16018 BIS Marking Yes Yes Yes CE Marking Yes Yes Yes Gross Weight 29.50 To 31.50 Kg 29.50 To 31.50 Kg 80.00 To 84.00 Kg Net Contents 6.175 To 6.500 Kg 6.175 To 6.500 Kg 21.375 To 22.500 Kg Approx. Height Of Fire Ext. 1025 Mm Approx. 1025 Mm 1360 Mm Discharge Mechanism Wheel Squeez Grip Wheel Applicable On Fires Class B & Electrical Started Fire Class B & Electrical Started Fire Class B & Electrical Started Fire IS 16018 Ratings 55B 55 B 113B Can Construction Hot Spinning Process Hot Spinning Process Hot Spinning Process Valve / Cap Construction Forging And Machining Forging And Machining Forging And Machining External Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Domestic Warranty In Years 10 10 10 G.A. Drawing Number Cf/Co2-6.5/Ga/02 Cf/Co2-6.5-Sg/Ga/03 Cf/Co2-22.5/Ga/02 Working Pressure 70Bar 70Bar 70Bar Dia. Of Shell (Od) 139.8 Mm 140 Mm 229.0 Mm Operating Temperature -30Oc To +55O C -30Oc To +55O C -30Oc To +55O C Hydrostatic Test Pressure 250Bar 250Bar 250Bar Cylinder Material Spec. 37Mn 37Mn 37Mn/ 34Crmo4 Body Thickness 4.2 Mm 4.2 Mm 5.4 Mm Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
- Petrol Pumps
- Generator Rooms
- Workshops
- Large Institutions
- Oil & Petrochemical Factories
