Conventional Fire Alarm System
- Ideal alarm system for small set-ups
- Identifies the zone in which the fire incidence has occurred
- A technological advantage over standalone detectors
- Detection devices are designed to detect actual fire instances only, decreasing the chances of fire alarms
- One of the most cost effective alarm solution
- Simple setup, no configuration required

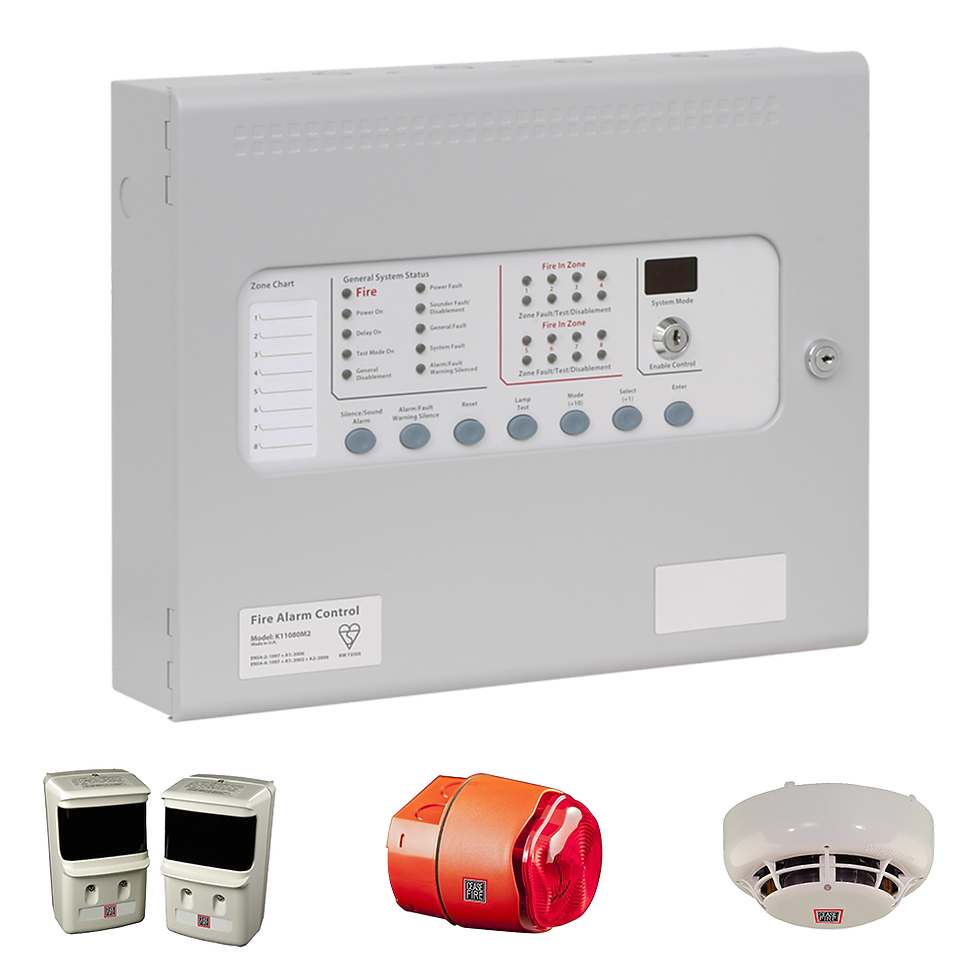

The conventional fire alarm system is a time-tested fire alarm system; this makes it one of the most reliable systems for ensuring fire safety of a premises. The Ceasefire’s Conventional Fire Alarm System is a state-of-art system which comprises of a control panel and a range of fire detectors and devices interacting with it.
The conventional system divides the premises into distinct zones. Each zone has its own set of detectors & alarm systems.
The detection & alarm devices are spread across the premises and catch the early signs fire. In case of a fire incidence the system identifies the zone in which the fire has occurred.
Features
- Fully certified to BS EN54-2 and BS EN54-4
- 2-wire and standard versions in 2,4 or 8 zones
- Compatible for use on BS5839: Part 1: 2013 installations
- 2-wire repeaters and ancillary boards
- Fully programmable
- Simple, single board construction
- Installer friendly
- Compatible with wide range of detection devices
- Two monitored sounder outputs
- 3 Amp power supply
- Auxiliary power output
Features 2 Zone
Conventional Panel4 Zone
Conventional Panel8 Zone
Conventional Panel2 Zone Conventional
Repeater Panel4 Zone Conventional
Repeater Panel8 Zone Conventional
Repeater PanelEnclosure 1.2mm Steel 1.2mm Steel 1.2mm Steel 1.2mm Steel 1.2mm Steel 1.2mm Steel Operating
Temperature–5°C to +50°C –5°C to +50°C –5°C to +50°C –5°C to +50°C –5°C to +50°C –5°C to +50°C Operating Humidity Cable Entries (20 Mm Knockouts):
12 × top, 12 × top rear, 1× lefthand
side, 1 × right hand sideCable Entries (20 Mm Knockouts):
12 × top, 12 × top rear, 1× lefthand
side, 1 × right hand sideCable Entries (20 Mm Knockouts):
12 × top, 12 × top rear, 1× lefthand
side, 1 × right hand side— — — Supply Voltage 230V AC (+10% / –15%) 230V AC (+10% / –15%) 230V AC (+10% / –15%) 230V AC (+10% / –15%) 230V AC (+10% / –15%) 230V AC (+10% / –15%) Power Supply Dc
Rating24V 3A 24V 3A 24V 3A 24V 3A 24V 3A 24V 3A Battery Capacity 7Ah 12V (2 per panel) 7Ah 12V (2 per panel) 7Ah 12V (2 per panel) — — — Number Of Fire
Zones2 4 8 2 4 8 Sounder Outputs 2 × 0.5A (max 1.6A
over all outputs)2 × 0.5A (max 1.6A
over all outputs)2 × 0.5A (max 1.6A
over all outputs)2 × 0.5A (max 1.6A
over all outputs)2 × 0.5A (max 1.6A
over all outputs)2 × 0.5A (max 1.6A
over all outputs)Contact Rating (Fault /
Local Fire / Fire)30V DC 1A 30V DC 1A 30V DC 1A — 30V DC 1A 30V DC 1A Detection Zone
Current1.6mA 1.6mA 1.6mA 1.6mA 1.6mA 1.6mA Detection Zone End
Of Line Resistor6.8k ohm 5% 6.8k ohm 5% 6.8k ohm 5% 6.8k ohm 5% 6.8k ohm 5% 6.8k ohm 5% Sounder Output End
Of Line Resistor10k ohm 5% 10k ohm 5% 10k ohm 5% 10k ohm 5% 10k ohm 5% 10k ohm 5% Contact Rating (fault /
Local Fire / Fire)— — — 30V DC 1A — — Detection Zone
Current— — — 1.6mA 1.6mA 1.6mA Weight 5.5Kg 5.5Kg 5.5Kg 5.5Kg 5.5Kg 5.5Kg Dimensions (mm) 385(W) × 310(H) × 92(D) 385(W) × 310(H) × 92(D) 385(W) × 310(H) × 92(D) 385(W) × 310(H) × 92(D) 385(W) × 310(H) × 92(D) 385(W) × 310(H) × 92(D) Features Photoelectric
Smoke DetectorCombined
Heat DetectorConventional
BeaconCombined
Sounder/StrobeConventional
Call PointBeam
Smoke DetectorMounting
BaseSKU No. 1CD1101 1CD1102 1CD1212 1CD1207 1CD1201 1CD1301 1CD1106 Disposable Chamber Yes — — — — — — Operating Voltage 9.5 - 30 Vd.c. 9.5 - 30 Vd.c. 17 – 41Vd.c. 9 - 30 VDC — 15 – 33Vd.c. — Quiescent
Current (typ)35m A 35m A 4.3μA (5.0μA max) — — 240m A — Maximum
Current Alarm40mA 40mA — — — 50mA — Remote
Indicator Drive20 mA(max) / 9.5
- 14mA (typ)20 mA(max) / 9.5
- 14mA (typ)— — — — — Operating
Temperature Range–10°C to +50°C –10°C to +50°C –10°C to +50°C –20°C to +60°C –10°C to +50°C –10°C to +50°C –10°C to +50°C Storage
Temperature Range–30°C to +60°C –30°C to +70°C –30°C to +60°C — –30°C to +70°C –30°C to +70°C –30°C to +60°C Maximum Humidity 95%RH - Non-
Condensing (at 40°C)95%RH - Non-
Condensing (at 40°C)95%RH - Non-
Condensing (at 40°C)75%RH - Non
Condensing (at 40°C)95%RH - Non-
Condensing (at 40°C)95%RH - Non-
Condensing (at 40°C)95%RH - Non-
Condensing (at 40°C)Ingress
Protection RatingIp42 Ip63 — — Ip24 — — Colour / Case
MaterialIvory White / ABS Ivory White /
PolycarbonateIvory White / ABS — Red / ABS Ivory White / ACS Ivory or White / ABS Weight (g) 95 — 88 — (Flush Mount) 110 (Surface
Mount with Back Box) 161(Receiver) 685
(Emitter) 600— Compatible
BasesCF-YBN-R/6, CF-YBO-R/6R, CFYBO-
R/6RS, CF-YBN-R/6SK, CFYBO-
R/6RN, CF-YBO-R/6PACF-YBN-R6 CF-YBO-R/6R CFYBN-
R/6SK CF-YBO-R/6RS CFYBO-
R/6RN CF-YBO-R/6PA— — — — — Base Heights (mm) 8, 13 8, 13 — — — — — Base Fixing Centres
(mm)48 – 74 48 – 74 48 – 74 — — — 48 – 74 Approvals LPCB EN54:2000 Part 7 LPCB (EN54:2000) Class A1 & A1R (CFDCD-
AE3) Class C & CR (CF-DCD-CE3)
Class C & CR (CF-DCD-CE3) (G204045)— — — LPCB (EN54:12) — Lens Colour — — Transparent Red — — — — Operating Current — — — min 46mA (dependant on tone
selected) max 70mA
(dependent on tone selected)— — 9.5 – 30Vd.c. Nominal Flash
Energy— — — 1W — — — Flash Rate — — — 60 minutes — — — Maximum Sound
Output (at 24vdc)— — — 112dB(A) at 1 metre
(dependent on tone selected)— — — IP Rating — — — IP45 (with internal back box-as
standard) IP66 (with external
back box-sold separately)— — — Nominal Operating
Resistance— — — — 470 ohms — — Operation Range — — — — — 5 - 100 (between
emitter & receiver)— Sensitivity Range — — — — — 25%, 50% 60%
obscuration (selectable)— Line Continuity
Options (INT. Kit)— — — — — Schottky / Zener — Weight (g) — — — — — — 51 Diameter (mm) — — — — — — 100 Height (mm) — — — — — — 8 Features Mounting Base IR Flame Detector Reflective Beam
Smoke DetectorSKU No. 1CD1106 1CD1606 1CD1305 Operating Voltage — 14 – 30Vd.c. 15 – 30Vd.c. Quiescent
Current (typ)— — 350μ A Maximum
Current Alarm— — 50μA Operating
Temperature Range-10°C to + 50°C -10°C to + 50°C -10°C to + 50°C Storage
Temperature Range-30°C to + 60°C –20°C to +65°C –30°C to +70°C Maximum Humidity 95%RH - Non
Condensing (at 40°C)95%RH - Non
Condensing (at 40°C)95%RH - Non
Condensing (at 40°C)Ingress
Protection Rating— IP65 — Colour / Case
MaterialIvory or White / ABS Blue / Die-Cast Zinc
Alloy (Za12)Ivory White / ABS Weight (g) 51 g 2 Kg (Emitter) 700
(Reflector) 50Approvals — — LPCB BS5839 Part
5 PrEN54 Part 12Operation Range — — 5 – 30 Sensitivity
Range— — 30% Line Continuity
Options (int. Kit)— — Schottky / Zener Alarm Current (selected
Via By Dil Switched)— 3 – 28mA — Test Signal
Voltage— 14 – 30Vd.c. — Relay Contact
Ratings— Current 1.0A (max) Voltage
50Vd.c. (max) Power 30W
(max) (resistive loads only)— Field Of View — 90° min. Cone — Operating
Wavelength Band— IR (0.75 – 2.7mm) — Power Up Time — 2 Seconds (max) — Weight (g) / Diameter
(mm) / Height (mm)51 / 100 / 8 — — Base Fixing Centres
(mm)48 ~ 74 — — Operating Current 9.5 – 30Vd.c. — — Maximum Wire
Thickness2.5mm square Cables — — Diameter 100 mm — — Height 8 — — - Office & Factories
- Schools & Colleges
- Community Centres
- Server Rooms
- Residential Buildings
- Hotels & Restaurants
