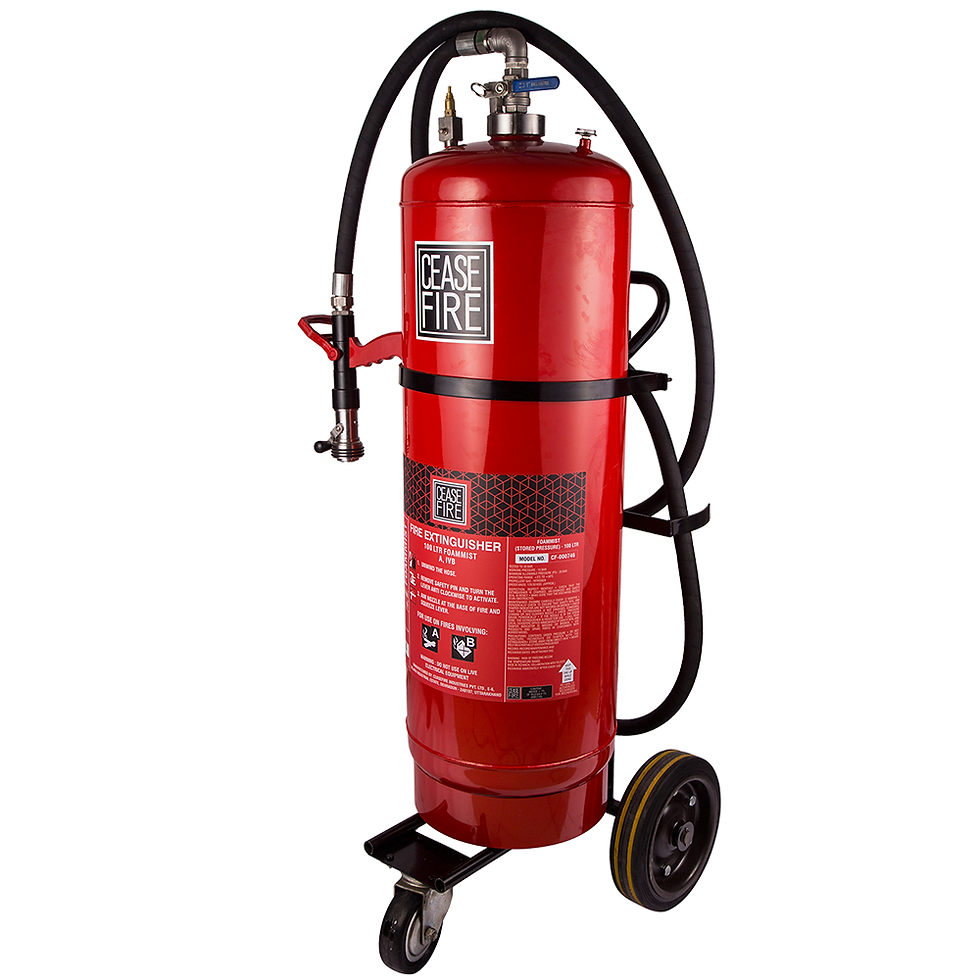

QUAD-Watermist & Foammist Based Wheeled (Stored Pressure Type) Fire Extinguisher
- Fights Class A, B and ESF Fires
- Specially designed Discharge Gun employs either spray or jet mode
- 5 metre long Hose Pipe
- Low pressure, safe technology
- Available in 20ltr, 45ltr & 90ltr (Watermist & Foammist)
Named after the four state-of-the-art Multi-Rotors working in sync in each container, the Ceasefire Quad brings together the efficiency of a fire extinguisher with the power of a hydrant system – without the drawbacks.
Harnessing water's immense cooling powers and multiplying them hundreds of times over, Ceasefire Quad breaks water down into a fine mist of under 80 microns. This mist is then thrown at the fire with a great kinetic force, covering a large surface area. As soon as the mist comes into contact with the fire, it instantly turns into steam. Enveloping the flames, cutting down the oxygen supply and reducing temperature to below combustion levels.
The Quad's Multi-Rotors, located within the mist generator, work in tandem, mixing water and air in a pre-set proportion to generate Watermist in the specially designed discharge gun. Thereby increasing the power of water by 400 times.
Meant for areas where fire risk is huge, or where large amount of combustible materials are stored, the trolley-mounted Quad can be taken anywhere with ease.
It is also an ideal extinguisher for closed environments, where unlike powder and other extinguishers, it doesn’t lose firefighting power. That’s cutting-edge technology at the very forefront.
Equipped with four Multi-Rotors in each container, it's fully capable of generating Watermist quickly and efficiently. Available in 20 Ltrs., 45 Ltrs, and 90 Ltrs, in Stainless Steel the Quad truly is a fire engine on wheels.FIRE RATINGS:
Agent Ratings Water Mist 10A - 20A Foam Mist 10A -20A, 233B -
Application: Fights Class A, B, C, F, and electrical fires. (May vary for different models of Quad)
-
Easy to use with quick activation: Being a stored pressure extinguisher it’s always ready to use.
-
Controllable discharge mechanism: The Ceasefire Quad fights fires with a lightweight dual-mode gun.
-
Braided Rubber Hose Pipe: This durable, long-lasting pipe doesn’t develop any cracks due to wear and tear.
-
Pressure gauge: Easy-to-read pressure gauge for ease of monitoring.
-
Stainless Steel Body: The extinguisher’s stainless steel body ensures that there is no chance of corrosion.
-
Hydrostatic pressure tested: This process ensures that your Quad performs perfectly. Because when it comes to a fire, there are no second chances.
-
Low-pressure, safe technology: Being a low-pressure extinguisher, there are no risks involved in case the extinguisher is used by mistake, even if people are around.
-
Safe on Humans: Since the Quad uses Watermist to suppress fires, it can safely be used around people. It makes an ideal extinguisher for places where there is high human traffic, like cinemas and auditoriums.
-
Environment friendly: The Quad uses bio-degradable foam in foammist and green foammist variants to fight fires. Making it an extinguisher that also protects the earth.
-
Anti-bacterial additive: This additive prevents any kind of bacterial growth in the water, keeping the water clean and fresh.
-
Certification: LPCB, BSI Kitemark, PED, MED certified (May vary for individual models).
-
Nomenclature For Portable Fire Extinguisher Fire Ext Water Mist 20L Ss Single Trolley Sp Red (Quad) Fire Ext Water Mist 45L SS Single Trolley Sp Red(Quad) Fire Ext Water Mist 90L SS Single Trolley Sp Red (Quad) Fire Ext Foam Mist 20L SS SP Red (Quad) Fire Ext Foam Mist 45L SS SP Red (Quad) Fire Ext Foam Mist 90L SS SP Red(Quad) Product Code Cf-001247 Cf-001249 Cf-001251 Cf-001248 Cf-001250 Cf-001252 Agent Water Water Water 1% Of Telisove 1 % 1% Of Telisove 1 % 1% Of Telisove 1 % Throw 4 Meters 4 Meters 4 Meters 10 Meters 10 Meters 10 Meters Certification Or Verifing Body Eurocert, BIS Eurocert, BIS Eurocert, BIS Eurocert, BIS Eurocert, BIS Eurocert, BIS Certification Type PED, IS 16018 PED, IS 16018 PED, IS 16018 PED, IS 16018 PED, IS 16018 PED, IS 16018 BIS Marking Yes Yes Yes Yes Yes Yes CE Marking Yes Yes Yes Yes Yes Yes Gross Weight 59.00 To 61.00 Kg 98.75 To 103.25 Kg 150.50 To 159.50 Kg 59.0 To 61.0 Kg 98.75 To 103.25 Kg 150.50 To 159.50 Kg Net Contents 19.00 To 21.00 Ltr 42.75 To 47.25 Ltr 85.50 To 94.50 Ltr 19.00 To 21.00 Ltr 42.75 To 47.25 Ltr 85.50 To 90.00 Ltr Approx. Height Of Fire Ext. Approx. 1075 Mm Approx. 1200 Mm Approx. 1615 Mm Approx. 1075 Mm Approx. 1200 Mm Approx. 1615 Mm Discharge Mechanism Operating Lever
(Ball Valve)Operating Lever
(Ball Valve)Operating Lever
(Ball Valve)Operating Lever
(Ball Valve)Operating Lever
(Ball Valve)Operating Lever
(Ball Valve)Applicable On Fires A,F
& Electrical Started FireA,F
& Electrical Started FireA,F
& Electrical Started FireClass A & B Fire Class A & B Fire Class A & B Fire IS 16018 Ratings 10A,E 10A,E 20A,E 10A 15A 20A Not Applicable Not Applicable Not Applicable 233B 233B 233B Can Construction Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Drawn Rolled And Mig Welded Valve / Cap Construction Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining Forging And Machining External Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Epoxy Polyester Powder Coating Domestic Warranty In Years 6 6 6 6 6 6 Approx. Gun Weight In Kg 1.30 Kg 1.30 Kg 1.30 Kg 2.02 Kg 2.02 Kg 2.02 Kg G.A. Drawing Number Cf/Sp-Wm20/Ga/00 Cf/Sp-Wm45/Ga/00 Cf/Sp-Wm90/Ga/00 Cf/Sp-Fm20/Ga/00 Cf/Sp-Fm45/Ga/00 Cf/Sp-Fm90/Ga/00 Working Pressure 15Bar 15Bar 15Bar 15Bar 15Bar 15Bar Dia. Of Shell (Od) 300 Mm 350 Mm 400.0Mm 300 Mm 350 Mm 400.0Mm Operating Temperature 5Oc To +55O C 5Oc To +55O C 5Oc To +55O C 5Oc To +55O C 5Oc To +55O C 5Oc To +55O C Hydrostatic Test Pressure 37.5 Bar 37.5 Bar 37.5Bar 37.5 Bar 37.5 Bar 37.5Bar Cylinder Material Spec. Ss 304
(1.4301)Ss 304
(1.4301)Ss 304
(1.4301)Ss 304
(1.4301)Ss 304
(1.4301)Ss 304
(1.4301)Body Thickness 1.8 Mm 2.0 Mm 2.0 Mm 1.8 Mm 2.0 Mm 2.0 Mm Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
- Oil & Petrochemical Factories
- Residential Buildings
- Large Institutions
- Workshops
- Generator Rooms
