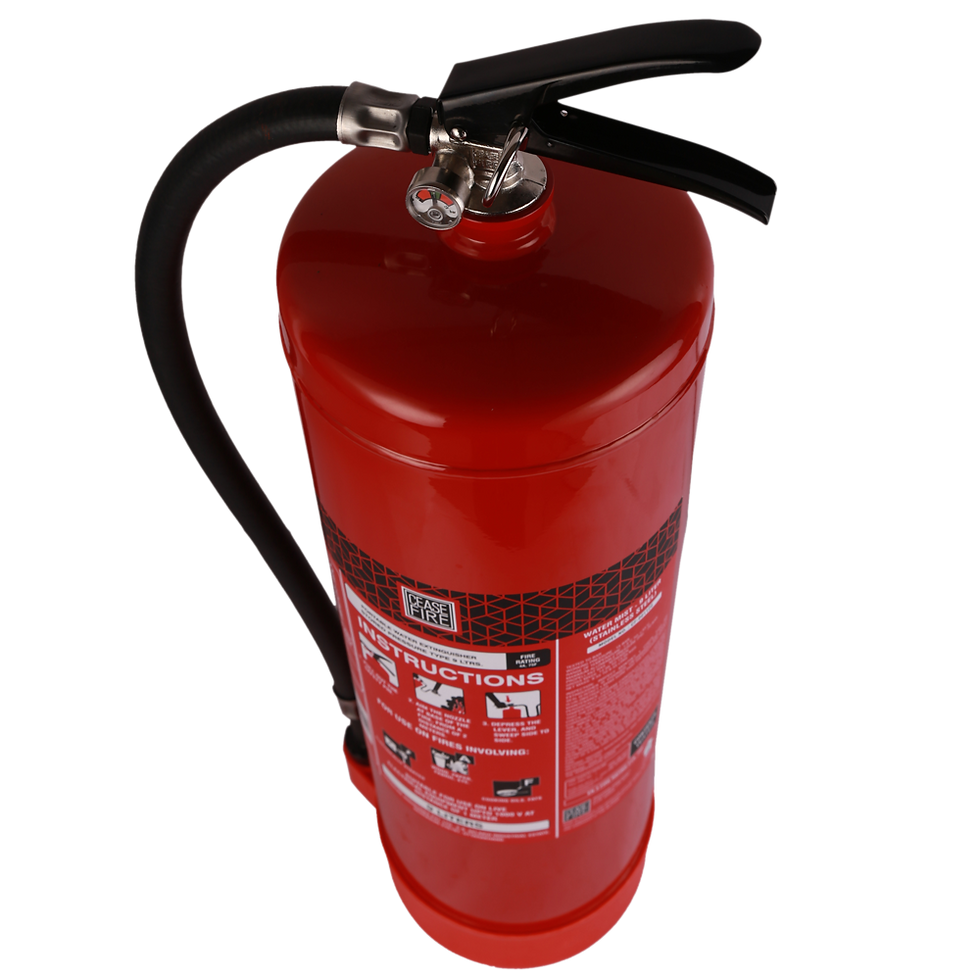

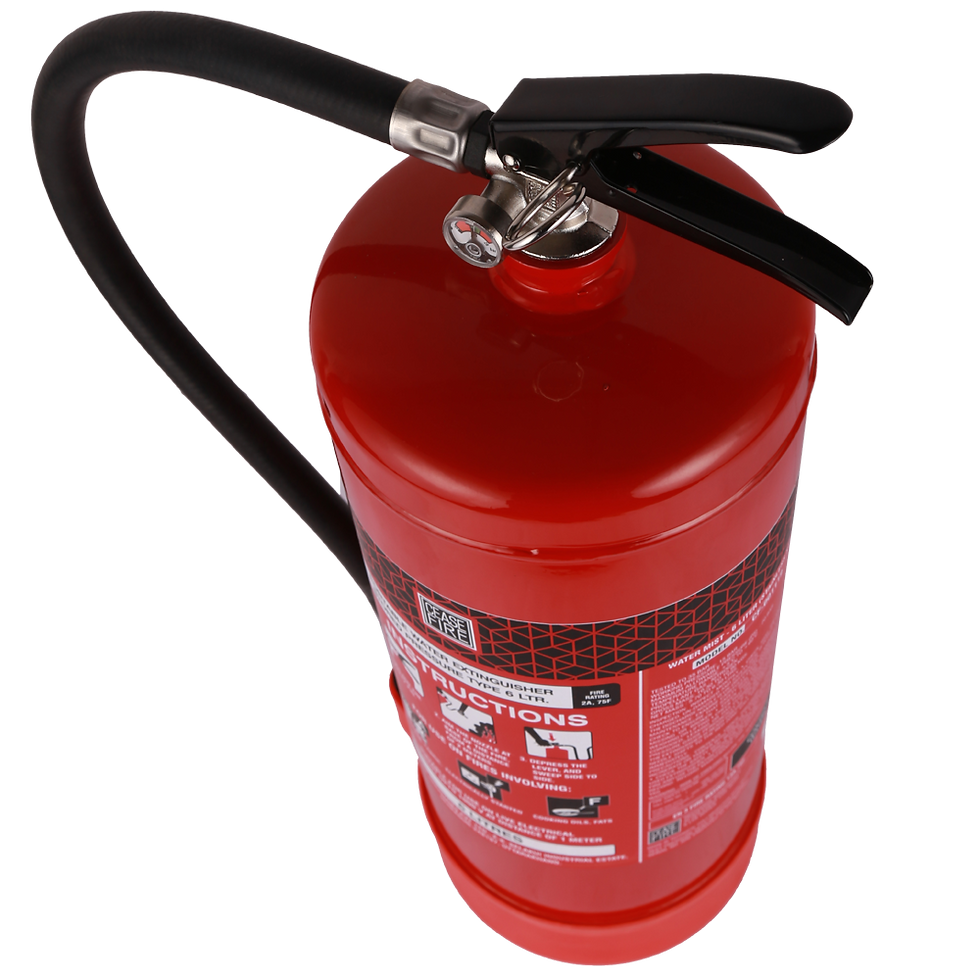

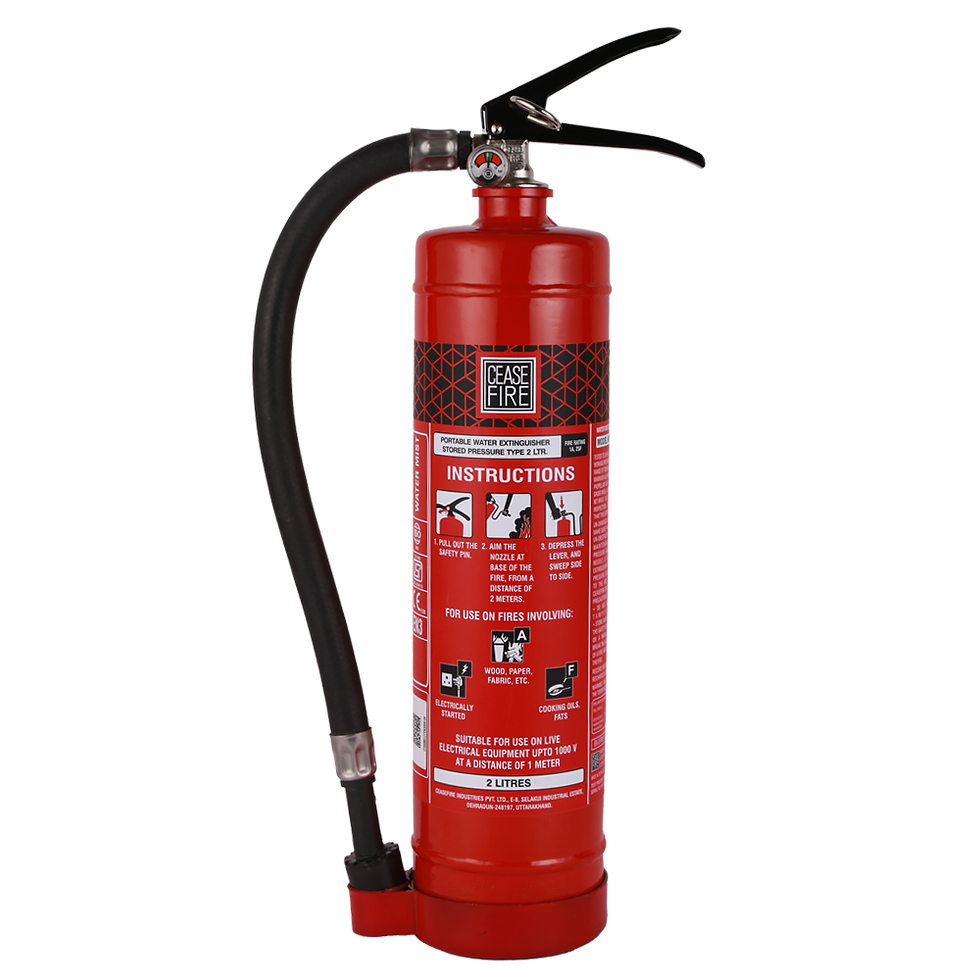

Watermist Based Portable (Stored Pressure Type) Fire Extinguishers
• Fights Class A, F and electrically started Fires
• Green extinguisher technology
• Low water usage
• Highly safe and effective
• Available in 2ltr, 3ltr, 6ltr & 9ltr
The revolutionary new Watermist Extinguishers are designed to combat Class A, F and electrically started fires.
Specially designed rotors in the extinguisher mixes water and air in a pre-set proportion to generate a fine mist of 40-60 micron molecules. These tiny droplets have a surface area coverage many times higher than water. (The principle is simple: the smaller the particles of water, the further they spread and the faster they cool.)
The mist is then propelled through a specially designed nozzle, giving it a large throw. On coming in contact with the flames, it turns into steam and envelopes the flames, this is called the blanketing effect. Water cools the fire down to below combustion levels and cut-off the oxygen supply. Without oxygen or heat, the fire dies out, in seconds.
Because this isn’t water in its natural state, the dangers of electrocution and flooding are eliminated. Which means, this powerful, reliable, efficient extinguisher can be used on most kinds of fire, including electrically started fires.
What’s more, since no synthetics or chemicals are used in the process, Watermist causes absolutely no collateral damage to your property or the environment.Ceasefire's Portable Watermist extinguishers range consists of 2 Ltrs., 3 Ltrs., 6 Ltrs., and 9 Ltrs. size variants in Stainless Steel containers.
FIRE RATINGS:
Size 2 Ltr 3 Ltr 6 Ltr 9 Ltr En-3 5A, 25F 8A, 25F 13A, 75F 21A, 75F IS-15683 1A, 25F 2A, 25F 3A, 75F 4A, 75F -
Classification: Fights fires of Class A, Class E and Class F rating
-
Water Efficient: Specially designed nozzles that convert water into a fine mist with minuscule droplets that increase the coverage of water in the fire zone.
-
Safe to use on electrical fires: Suitable for live electrical equipment up to 1000 V from a distance of 1 meter.
-
Solid stainless steel body: Its solid stainless steel body can withstand high temperatures
-
Pressure gauge: Easy-to-read pressure gauge for ease of monitoring.
-
Reduces damage: Uses filtered water, eliminating collateral damage
-
Environment friendly: The use of distilled water in combination with cutting-edge technology ensures this extinguisher has no negative impact on the environment
-
Certification: LPCB, BSI Kitemark, PED, MED certified.
-
Nomenclature For Portable Fire Extinguisher Fire Ext Water Mist 2L SS SP Red Fire Ext Water Mist 3L SS SP Red Fire Ext Water Mist 6L SS SP Red Fire Ext Water Mist 9L SS SP Red Product Code Cf-001118 Cf-001240 Cf-001119 Cf-001120 Agent Water Water Water Water Stored Pressure / Cartridge Stored Pressure Stored Pressure Stored Pressure Stored Pressure Certification Or Verifing Body EUROCERT, BIS,LPCB EUROCERT, BIS EUROCERT, BIS,LPCB EUROCERT, BIS,LPCB Certification Type PED,IS 15683 , EN3 PED,IS 15683 PED,IS 15683 , EN3 PED,IS 15683 , EN3 Dual Certificate Yes Not Applicable Yes Yes BIS Marking Yes Yes Yes Yes LPCB Marking Yes Not Applicable Yes Yes KITEMARK Marking Yes Not Applicable Yes Yes CE Marking Yes Not Applicable Yes Yes Throw 3 Meters 3 Meters 3 Meters 3 Meters Gross Weight 4.45 To 4.65 Kg 5.74Kg Approx. 10.30 To 10.90 Kg 14.05 To 14.95 Kg Gross Weight (With Less Thickness 4.40 To 4.70 Kg 5.80 To 6.0 Kg 10.30 To 10.90 Kg 14.40 To 14.80 Kg Net Mass 1.90 To 2.00 Ltr 3Ltr Approx. 5.70 To 6.00 Ltr 8.55 To 9.00 Ltr Discharge Mechanism Squeeze Grip Squeeze Grip Squeeze Grip Squeeze Grip Applicable On Fires A, F & Electrical Started Fire A, F & Electrical Started Fire A, F & Electrical Started Fire A, F & Electrical Started Fire IS 15683 Ratings 1A,E 2A,E 3A,E 4A,E 25F 25F 75F 75F EN 3 Ratings 5A Not Applicable 13A 21A 25F Not Applicable 75F 75F Can Construction Drawn Rolled & Mig Welded Drawn Rolled & Mig Welded Drawn Rolled & Mig Welded Drawn Rolled & Mig Welded Valve / Cap Construction Forging And Machining Forging And Machining Forging And Machining Forging And Machining External Coating Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Epoxy Polyester Powder Helium Leak Detection Testing Yes Yes Yes Yes Warranty In Years 6 6 6 6 G.A. Drawing Number Cf/Sp-Wm2Lb/Ga/02 Cf/Sp-Wm3Lb/Ga/02 Cf/Sp-Wm6Lb/Ga/02 Cf/Sp-Wm9Lb/Ga/01 Working Pressure 15 Bar 15 Bar 15 Bar 15 Bar Hydrostatic Test Pressure 35 Bar 35 Bar 35 Bar 35 Bar Dia. Of Shell (Od) 140 Mm 175 Mm 175 Mm 175 Mm Approx. Height Of Fire Ext. 485 Mm 445 Mm 575 Mm 690 Mm Body Thickness 1.5 Mm 1.5 Mm 1.5 Mm 1.5 Mm Body Thickness
(Less Thickness)1.5 Mm 1.5 Mm 1.5 Mm 1.5 Mm Cylinder Material Spec. Ss 304 (1.4301) Ss 304 (1.4301) Ss 304 (1.4301) Ss 304 (1.4301) Operating Temperature 5 O C To 60O C 5 O C To 60O C 5 O C To 60O C 5 O C To 60O C Schraeder Valve Yes Yes Yes Yes Pressure Relief Valve Yes Yes Yes Yes Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
- Hotels & Restaurants
- Offices & Factories
- Central Kitchens
- Malls
- Large Institutions
